Termate bus insulation in MCCs

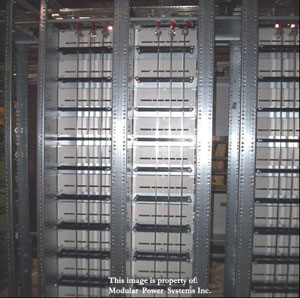

Termate Bus in MCC
Full-view
  • Part of Classic Plug-in MCC design created for North American market
  • Biox Project partial assembly built for ABB
  • x 3 TPCu per phase minimum drop size for unconditional 50 kA one second rating
  • Engineering design to Horizontal bus by MPS
  • Material UL 94 Vo rated.
  • Completely enclosed vertical bus accessible from front through drop down insulation plates
  • Stabs less than 12mm thick not requiring shutters

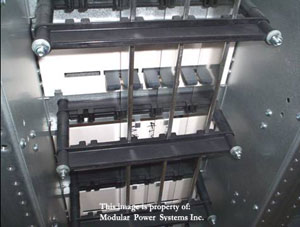

Termate Bus in MCC
Full-view
