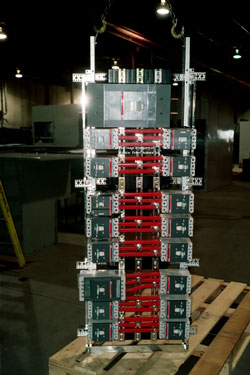

Power Panels:

600VAc, 3 phase, 3 wire, 1600A
  • Created from standard Logstrup catalogue parts
  • 600 VAc, 3phase, 3 wire, 1600A continuous, unconditionally rated for 50kA one second
  • 1200A main breaker ABB S7
  • Partial assembly for Toshont to incorporate in a mining project
  • Cross connections rated at 500A each
  • Slide up and down to catch centers of whatever breaker
  • Mechanically held by an adjustable height load side outboard support

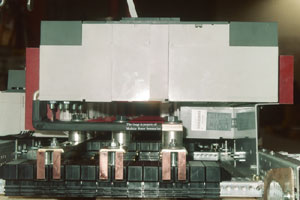

1200A Main Breaker ABB S7 Connection
