Omega Motor Control Center


Omega System
Full-view
  • Logstrup's latest design in modular systems: Omega - "The Last Word."
  • Structure is 70kA rated for one second horizontal and vertical.
  • Units are fully withdrawable.
  • Seperate termination box for cover with power.
  • Profibus termination for field means no going into unit to pull terminal blocks
  • 15" wide wire-way.
  • Each unit is 22" wide
  • Two mounting plates.
  • This MCC is for Wyeth Pharmaceutical

Omega System
Full-view

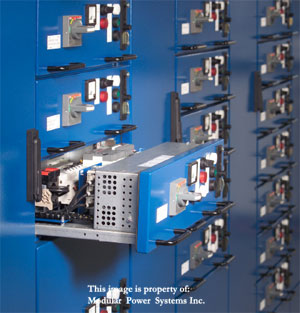

  • Fully withdrawable unit shown in disconnect position
  • Breaker on front mounting plate
  • Control on rear plate
  • Arc flash shield construction on front part of drawer
